Proslat steel cabinets
Cabinetry with a kitchen-grade finish.
Fully welded American steel cabinets with soft-close drawers, designed around your walls and backed by a lifetime warranty on drawer slides. Choose refined Lux, bold Fusion Plus, or a modular CORE rolling toolbox.
- Gauge
- 18-gauge
- Steel
- American
- Drawers
- Soft-close
- Warranty
- Lifetime on slides
Proslat storage
Refined, bold or rolling
Built like fine furniture

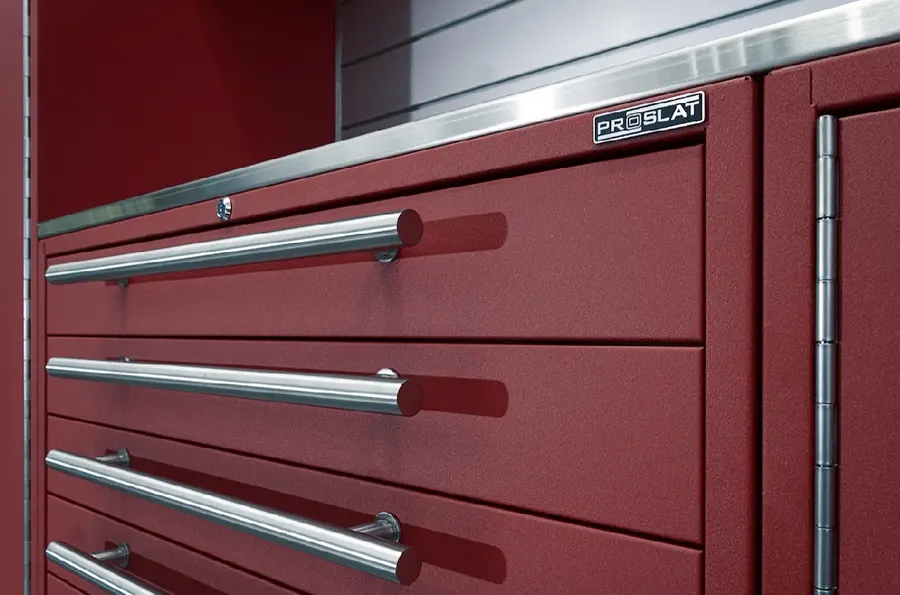

Solid-color cabinets with stainless bar handles and a clean, kitchen-style look.
Explore Lux
High-contrast performance
Black frames, high-gloss color doors and accent handles. Built to stand out.
Explore Fusion Plus
Modular rolling toolboxes
A 44-inch main box in American steel that expands with side lockers, drawers and a top box.
Explore COREProslat Lux

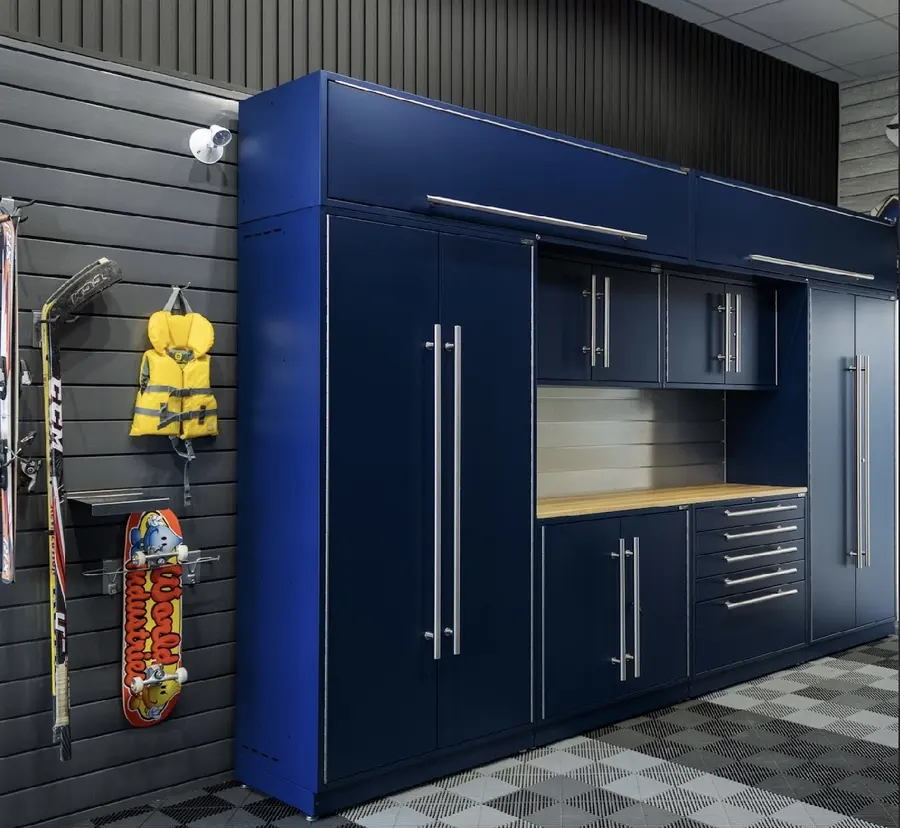

Bigger is better.
Lux is built in Proslat's state-of-the-art plant, where precision sheet metal shaping and robotic welding keep every cabinet perfectly square. Its 40-inch-wide cabinets are some of the largest in the industry, so you get more storage per foot of wall, not just more pieces.
Fully welded steel
18-gauge American steel with robotic welds. Cabinets arrive assembled, which makes installation faster and cleaner.
Rust protection
A zirconium treatment seals the steel, then an advanced powder coat finish protects it for years.
Soft-close drawers
Soft-close Fulterer ball-bearing slides rated for 200 to 300 lb per drawer, with a lifetime warranty on slides and hinges.
Dual-wall doors
Lockable doors on commercial continuous hinges, with door trays for grab-and-go items.
Heavy-duty shelves
1.5-inch adjustable shelves rated for 200 lb each, inside base, tall and wall cabinets.
Level on any floor
2-inch adjustable feet and a kickplate keep the run level and finished on uneven concrete.
Colors

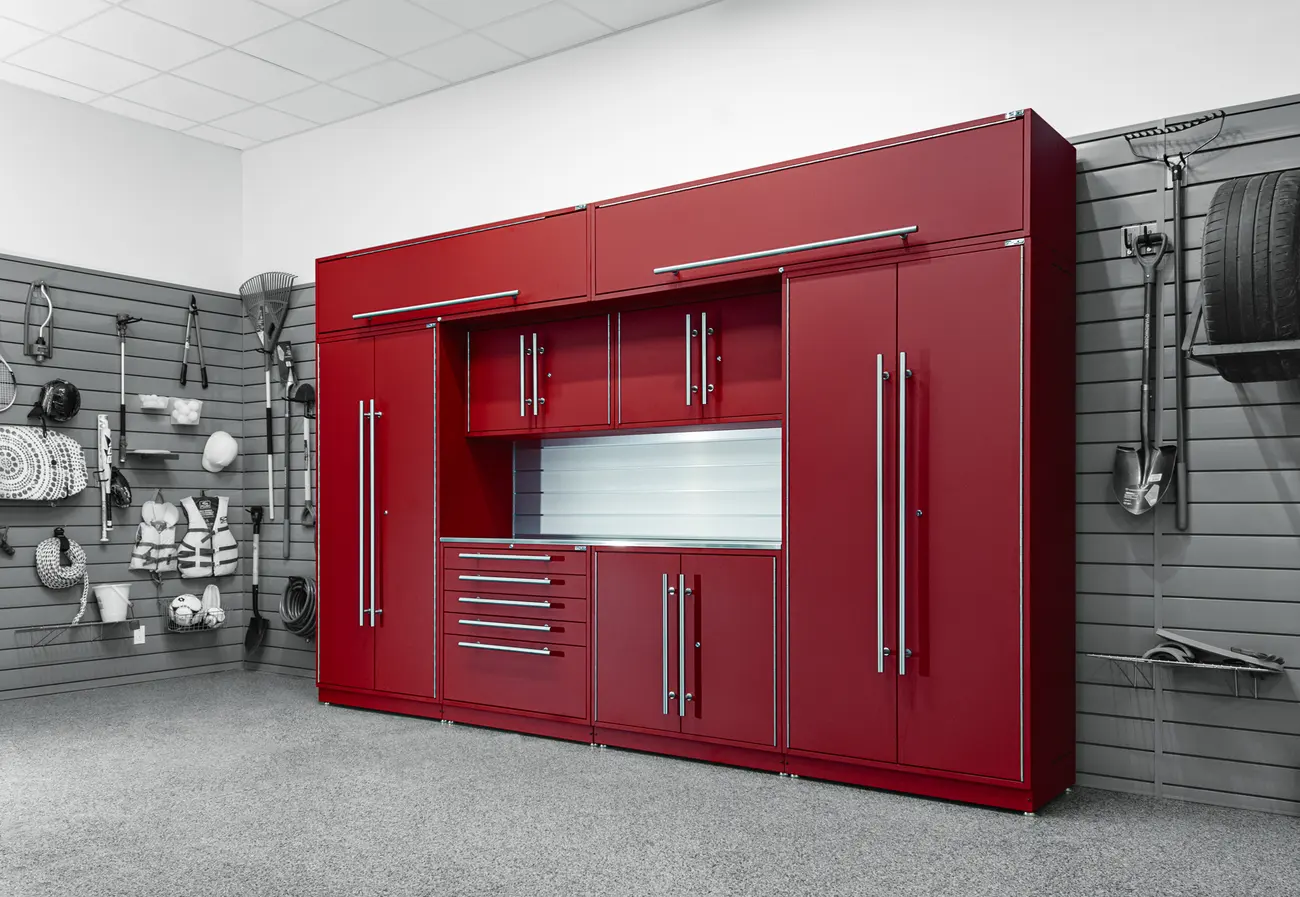

Premium colors such as red are also available, and doors and drawers can be ordered in a different color than the body.
Work surfaces
- 16-gauge stainless steel, rated for 500 lb
- Maple wood

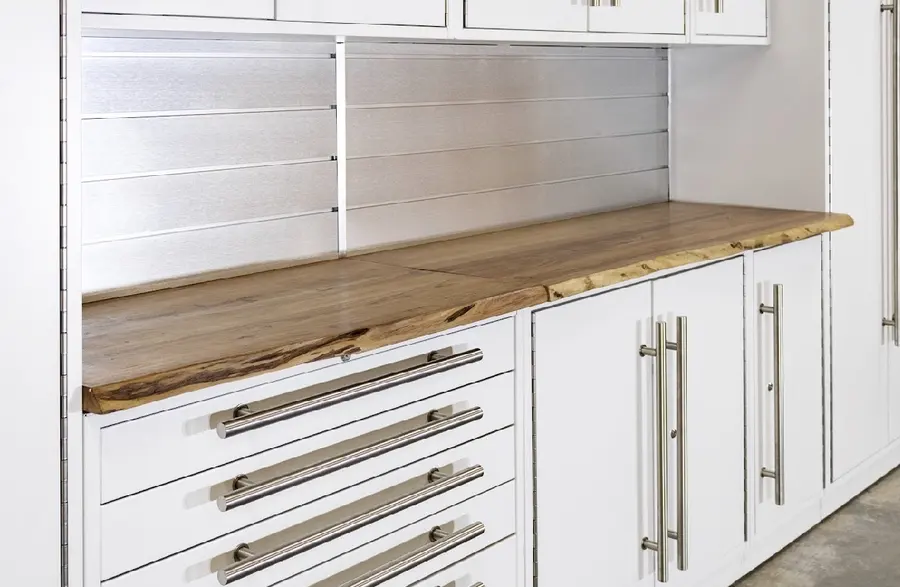

- Live edge wood for a one-of-a-kind look
Add-ons
- Aluminum slatwall backsplash (150 lb per sq ft)
- Stainless steel sink module
- LED light bars in cool white or RGB
- Charging station and power bar with USB
- Drawer organizers, door trays and extra shelves
Cabinet modules
| Module | Size (W × H × D) | Storage |
|---|---|---|
| 3, 5 or 10 drawer base | 40 × 36.5 × 22 in. (10 drawer: 58.5 in. tall) | 200–300 lb per drawer |
| 2-door base | 40 × 36.5 × 22 in. | 1 shelf, 200 lb |
| Tall cabinet | 40 × 81.5 × 22 in. | 3 shelves, 200 lb each |
| Locker | 20 × 81.5 × 22 in. | 3 shelves, 200 lb each |
| Wall cabinet | 20 or 40 × 23 × 15 in. | 1 shelf, 200 lb |
| Overhead | 40, 60 or 80 × 18 × 22 in. | 200 lb |
| Sink base, corner units | Sized to fit your run | Ask us |

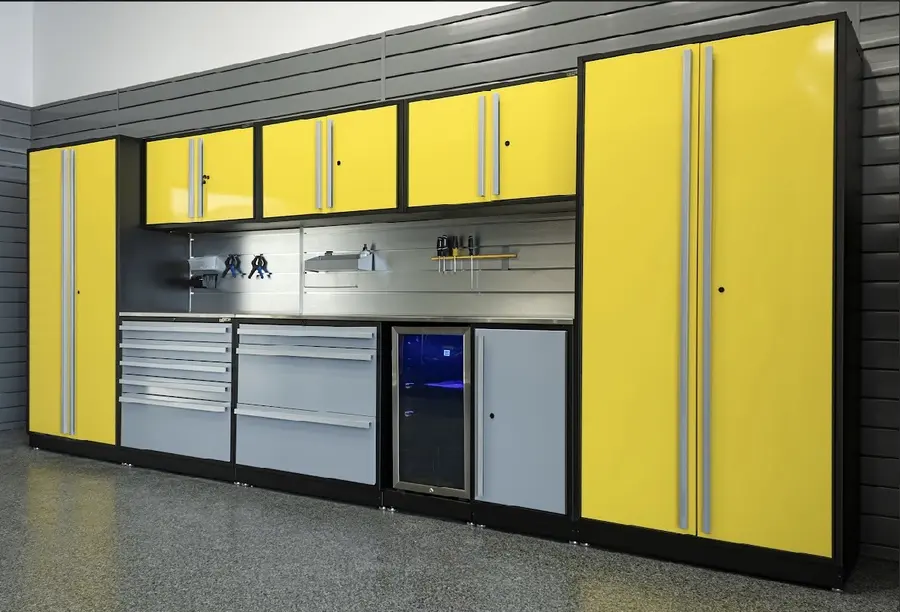

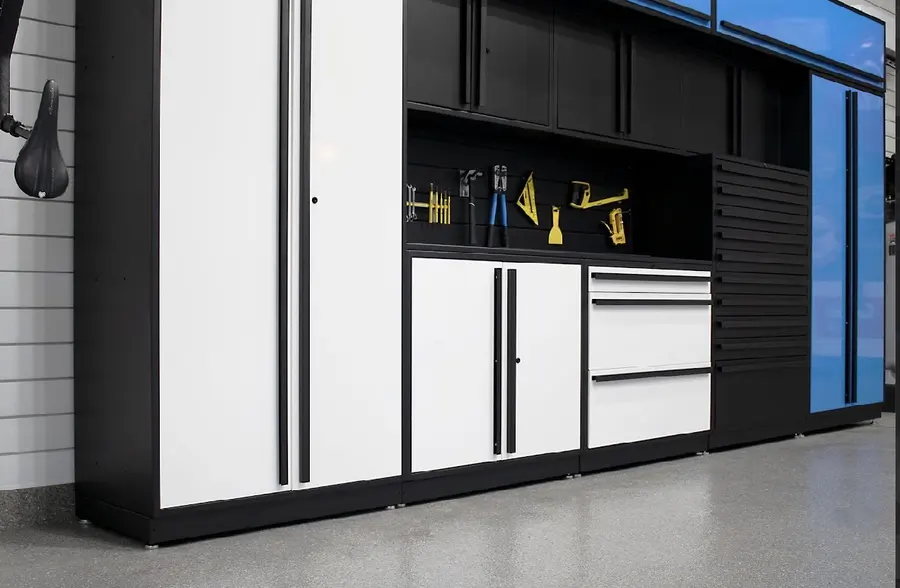

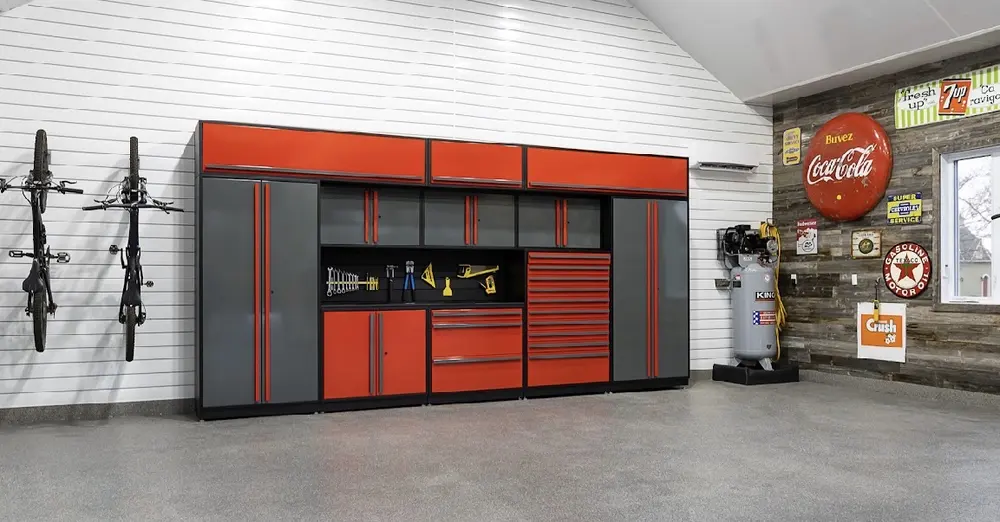

Proslat Fusion Plus
Color that pops.

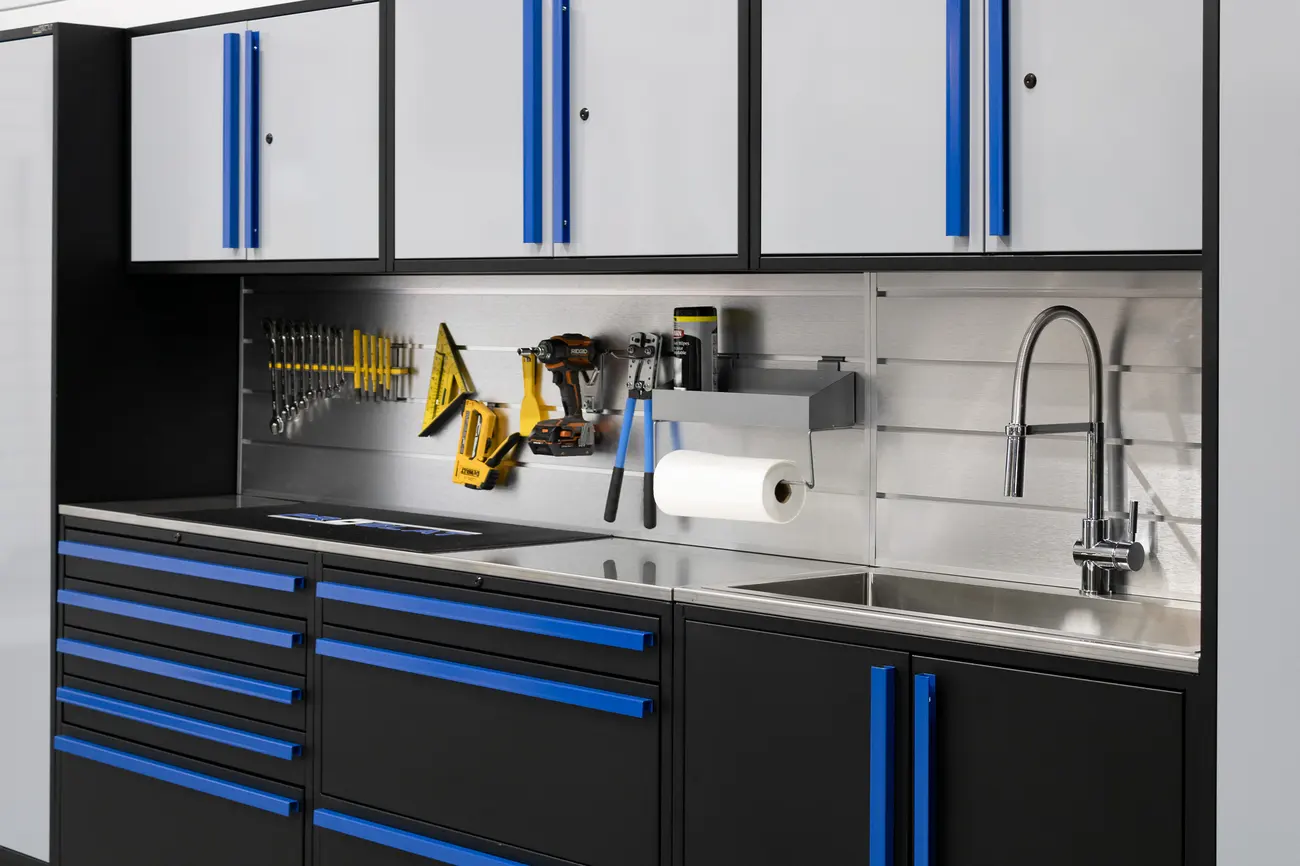

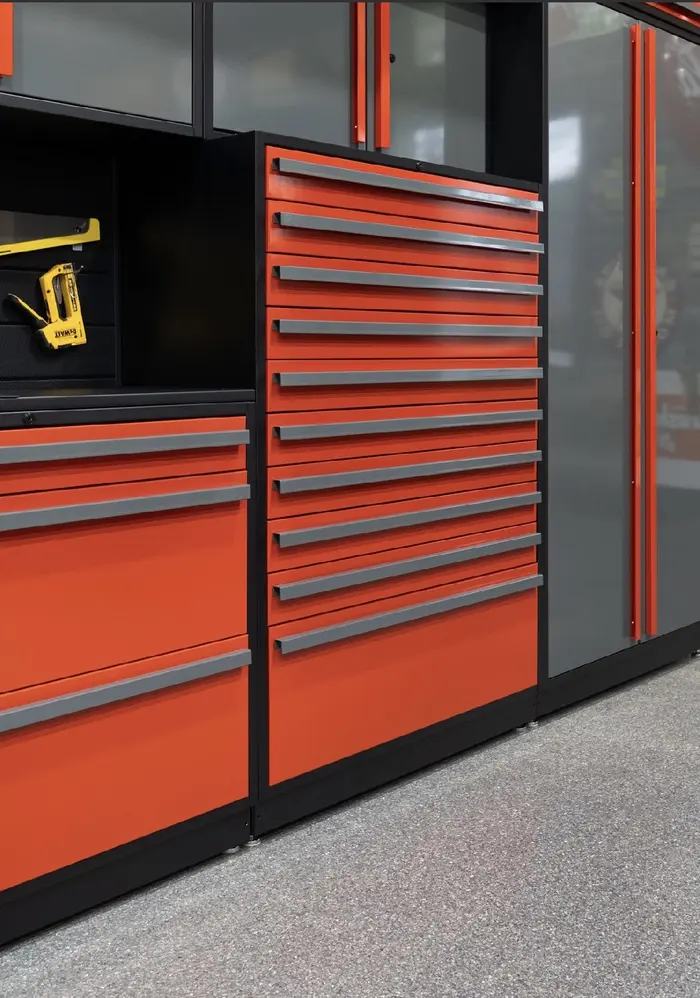

Fusion Plus pairs a black cabinet body with colored doors, drawer fronts and handles. Start with a standard combination or choose hand-painted premium colors to match your car, your team or your brand. Underneath, it's the same fully welded American steel and lifetime warranty on drawer slides and hinges as every Proslat cabinet.
400 lb drawers
Soft-close Fulterer roller-bearing slides carry up to 400 lb in every 3, 5 and 10 drawer base.
Fully welded steel
18-gauge American steel, robot welded so every cabinet is square, and delivered assembled.
Sealed against rust
A zirconium treatment seals out rust, then an advanced powder coat finishes it.
Lockable dual-wall doors
Commercial continuous hinges, door trays and 1.5-inch adjustable shelves rated for 200 lb.
Carbon fiber option
Choose an aluminum or Procore+ carbon fiber slatwall backsplash, both rated for 150 lb per sq ft.
Lifetime warranty
All drawer slides and hinges are covered by a lifetime warranty.
Standard colors
In stock and usually ship within 72 hours.
Premium hand-painted
For doors and handles.
Work surfaces & add-ons
- Stainless or black powder-coated steel, or maple wood (500 lb)
- Stainless steel sink module
- LED light bars in cool white or RGB
- Charging station and power bar with USB
- Drawer organizers, door trays, coat hanger and utility hooks
Fusion Plus uses the same cabinet modules and sizes as Lux, shown in the table above.

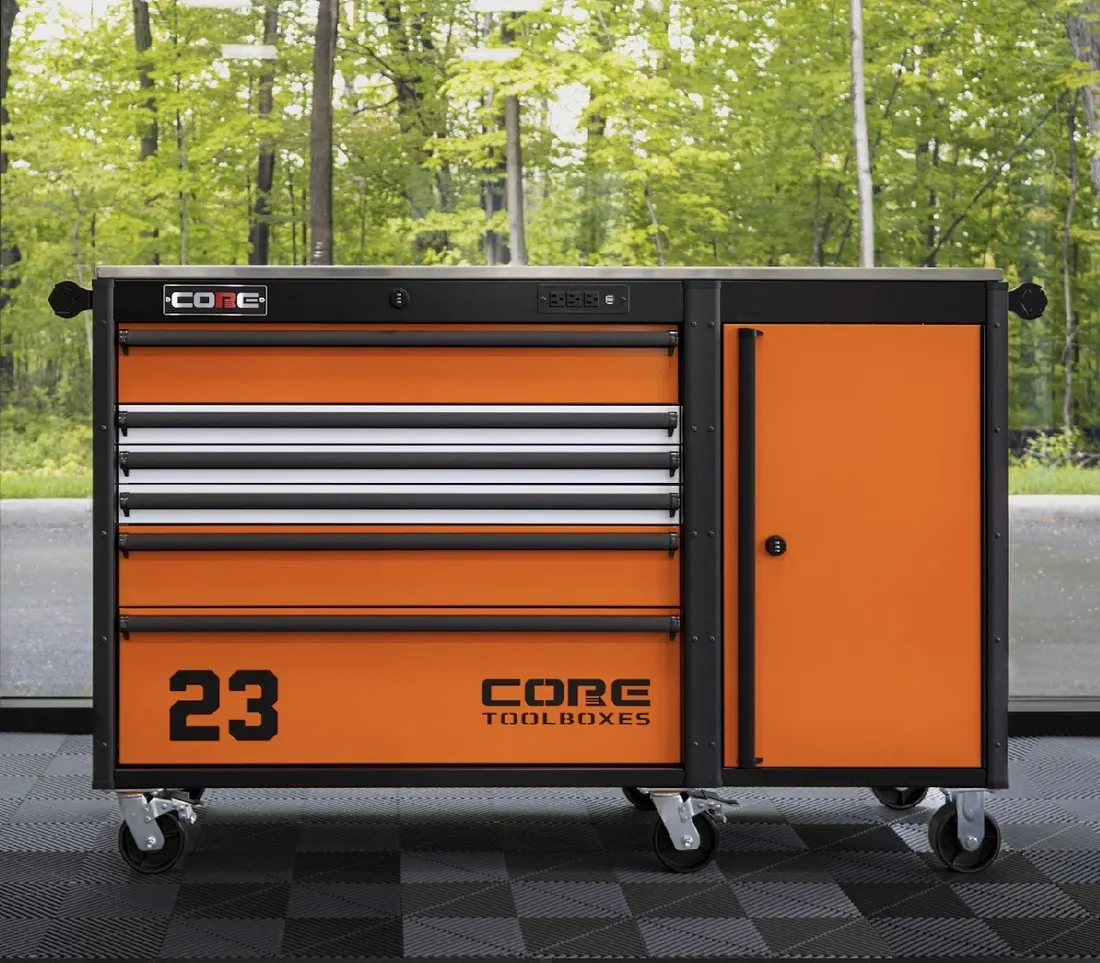

CORE Toolboxes by Proslat
A toolbox that grows with you.

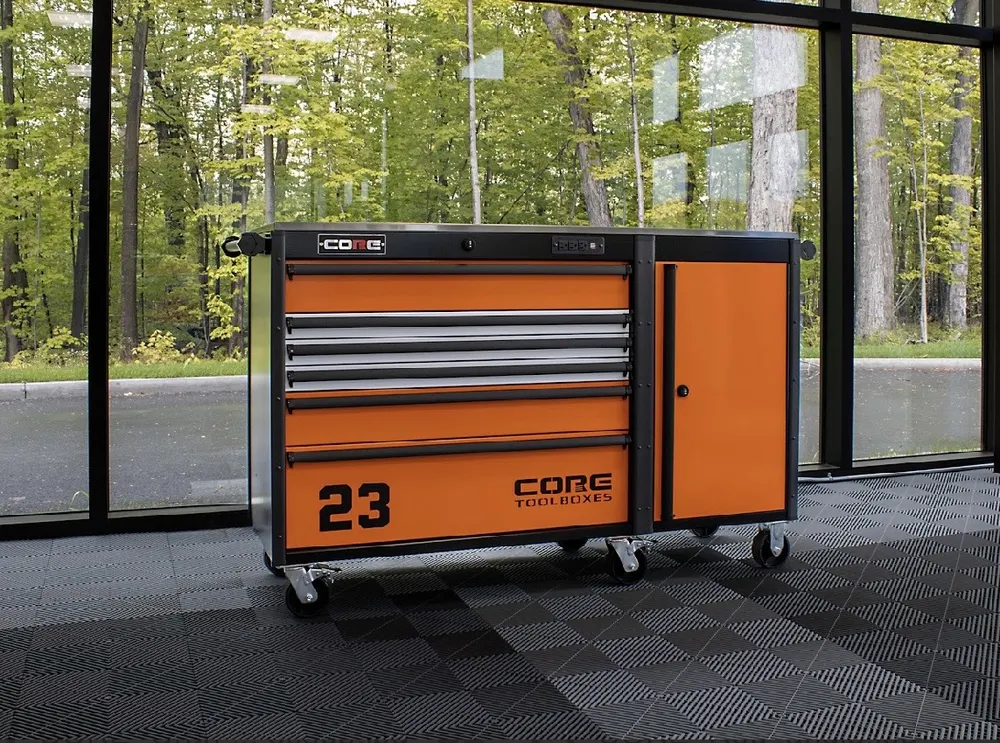

CORE is a modular rolling toolbox system built around a 44-inch main box. Start with one box, then add side lockers, side drawers or a top box as your tool collection grows. Made with American steel, assembled in the U.S. and backed by a limited lifetime warranty.
Soft-close 400 lb drawers
Soft-close, industrial Austrian-made roller-bearing slides support up to 400 lb per drawer.
American steel
Quad Core construction in reinforced American steel, with robotic automotive-grade welds that keep every box perfectly square.

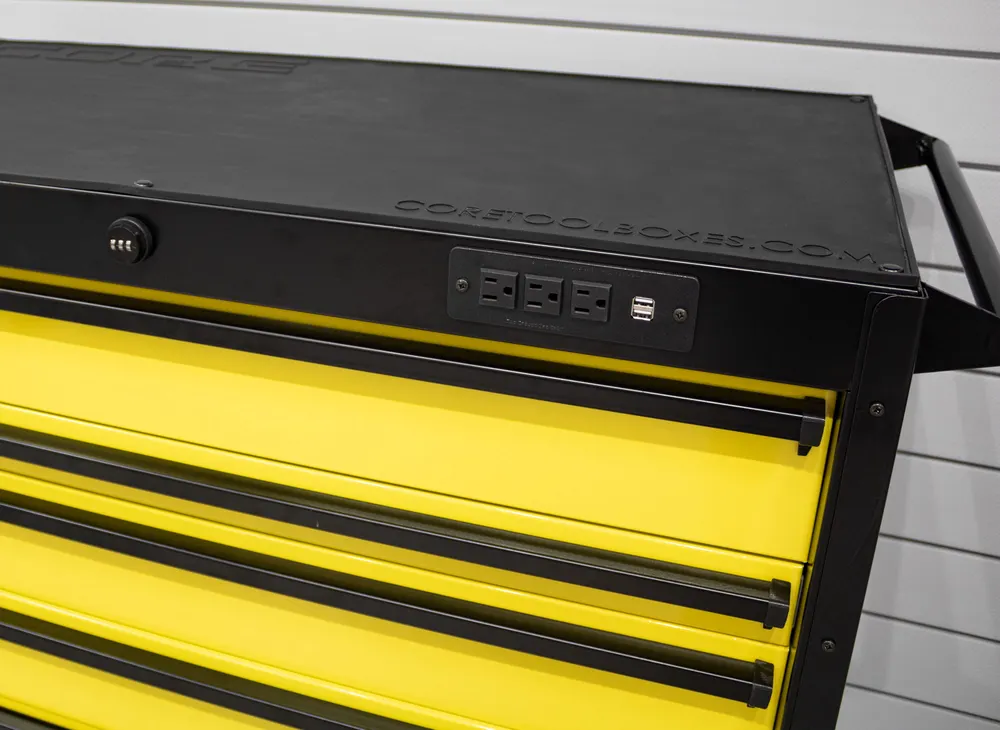

Power on board
A built-in power bar with outlets and USB ports charges batteries and runs tools right at the box.
Build your box
44-inch main and top boxes, plus 22-inch side lockers and side drawers in standard or tall heights.

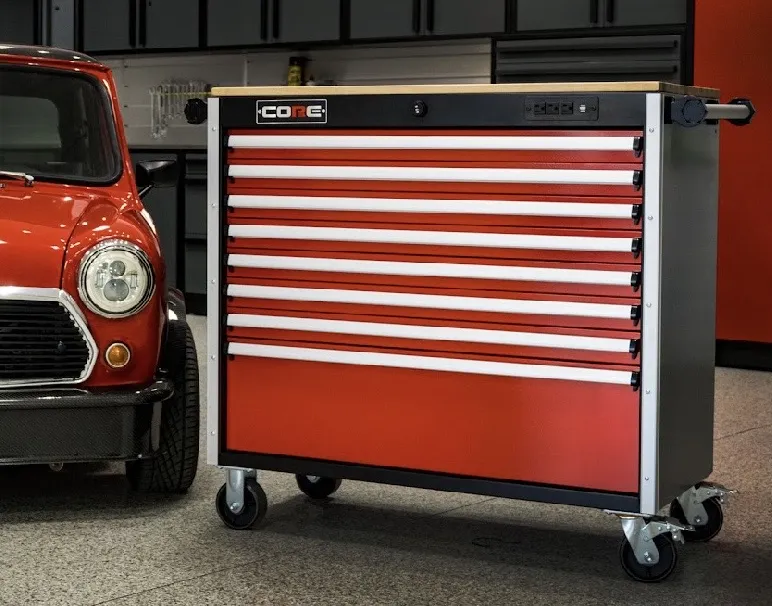

Your work surface
Rubber mat included, or upgrade to maple or stainless steel.
Roll or stay put
5-inch heavy-duty casters, or leveling foot casters that lock the box in place.
CORE modules
| Module | Size (W × H × D) | Steel | Drawers | Load capacity |
|---|---|---|---|---|
| 44" Main toolbox | 44 × 36¼ × 22 in. | 18-gauge | Up to 8 | 4,000 lb |
| 44" Top toolbox | 44 × 22 × 22 in. | 18-gauge | Up to 6 | 2,000 lb |
| 22" Side drawers | 22 × 36¼ × 22 in. | 16-gauge | Up to 8 | 2,000 lb |
| 22" Side locker | 22 × 36¼ × 22 in. | 16-gauge | Door | 2,000 lb |
| 22" Tall side drawers | 22 × 58¼ × 22 in. | 16-gauge | Up to 14 | 2,000 lb |
| 22" Tall side locker | 22 × 58¼ × 22 in. | 16-gauge | Door | 2,000 lb |
Drawer sizes
Mix drawer heights in any module. Every drawer is rated for 400 lb and is 1911⁄16 in. deep inside.
| Drawer | Inside height | Inside width, 44" modules | Inside width, 22" modules |
|---|---|---|---|
| Single | 2⅛ in. | 39⅜ in. | 17⅜ in. |
| Double | 51⁄16–5⅛ in. | 39⅜ in. | 17⅜ in. |
| Triple | 715⁄16–81⁄16 in. | 39⅜ in. | 17⅜ in. |
| Bottom | 10⅜ in. | 39⅜ in. | 17⅜ in. |
Work surfaces come in 22, 44 and 66 in. widths to cover any combination of modules. Stainless and wood tops are rated for 500 lb.
Standard colors
In stock and usually ship within 72 hours.
Made-to-order colors
Handles & trim
Black or silver anodized aluminum handles, with bumpers and connectors to match.
Ask about CORETop Garage Design Center
Design your cabinets in 3D
Lay out Lux or Fusion Plus cabinets on your own walls, try colors, handles and work surfaces, and see the finished wall in 3D. When you're happy with it, save your design and we'll review it with you and build your quote.
Designed, not boxed
Built around your wall
- Measured layoutWe plan cabinet runs around doors, outlets, windows and where your vehicles park.
- Mix and matchCombine drawer bases, lockers, tall and overhead cabinets to fit what you actually store.
- Pairs with slatwallAluminum slatwall backsplashes keep everyday tools in reach above the counter.
See your cabinet layout
We'll draw a custom design before you commit.
